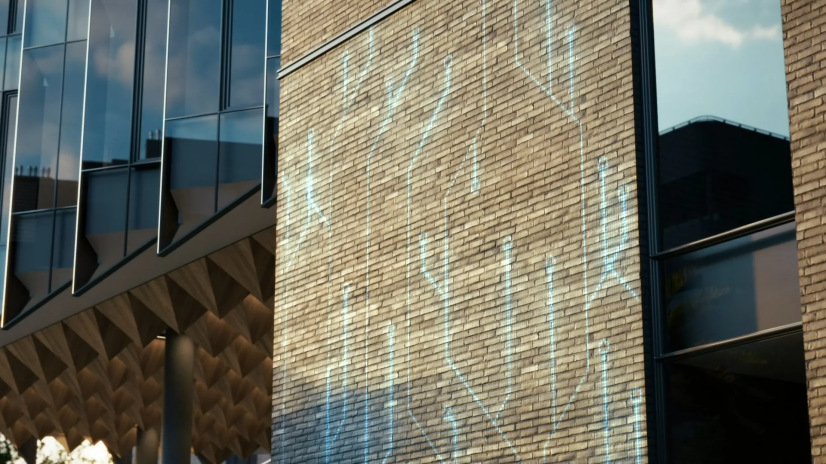

Uncompromised Aesthetic Freedom
Achieve the authentic appearance of stone, wood, or brick across any facade, seamlessly integrating renewable energy generation with architectural design freedom.
eSolarFacade
Redefining Building Facades with Solar Innovation
econiclay® TECHNOLOGY
Transforming Facades
into Clean Energy
Powerhouses

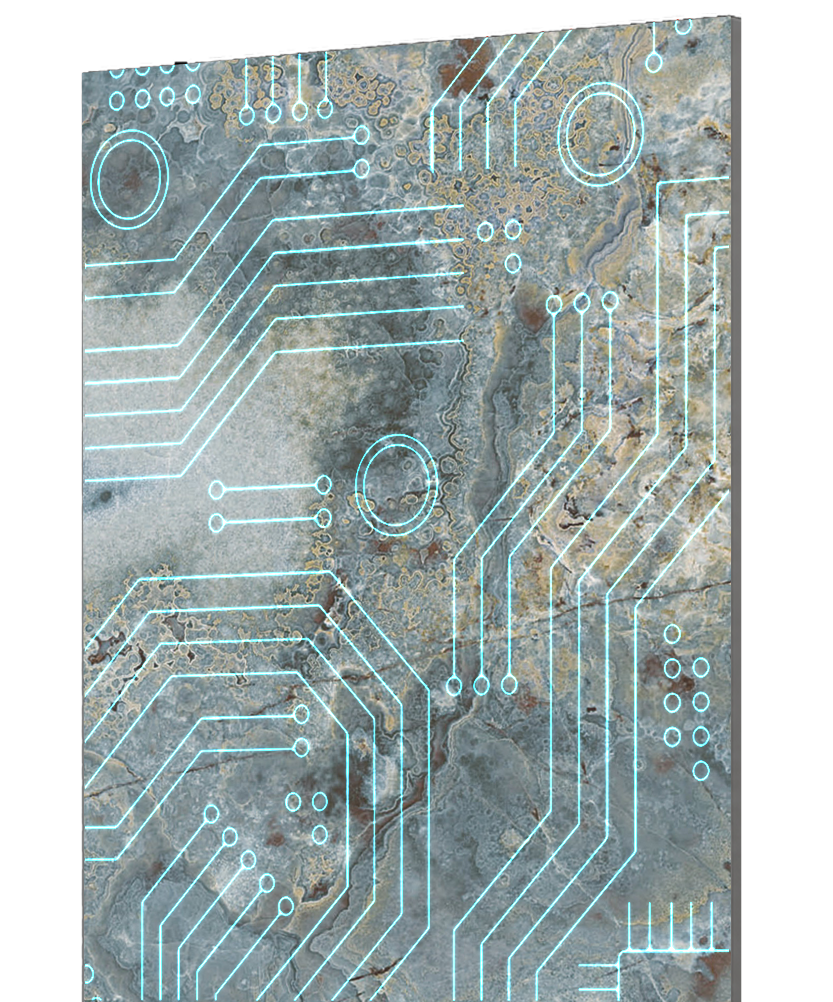

SolarFacade is PHOMI HOLDING's next-generation building-integrated photovoltaic (BIPV) facade system, designed to seamlessly combine renewable energy generation with architectural aesthetics. It transforms conventional building envelopes into high-performance solar facades, enabling buildings to generate clean electricity without compromising design freedom.
ADVANTAGE
A New Class of Building Surface

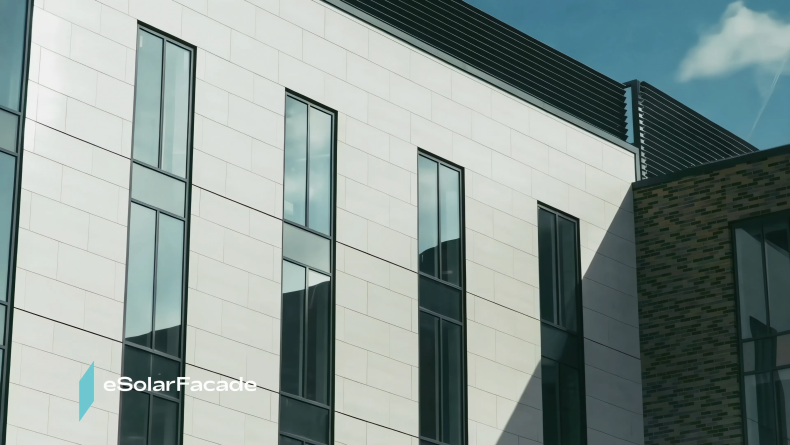

Beyond Glass BIPV Limitations
Move beyond traditional glass-based BIPV. Designed for the 90% of buildings without glass curtain walls, unlocking solar energy potential for virtually all building types.

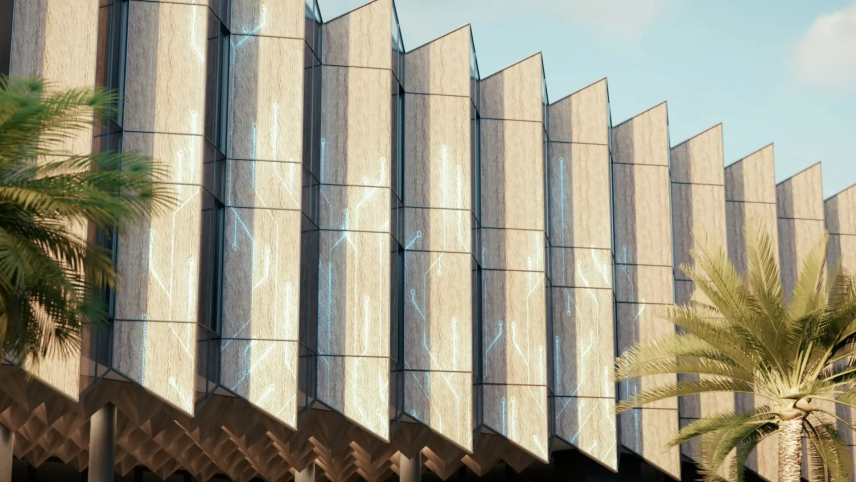

Higher Energy Output & Lower Carbon
Generate over 60% more power than standard 60% transmittance glass BIPV, while reducing product carbon footprint by 54.6%, maximizing both efficiency and sustainability.

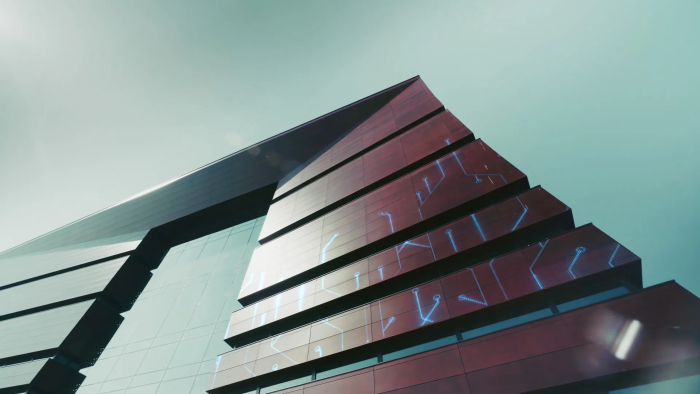

Intelligent Multi-Functional Building Skin
Transform building envelopes into active systems with optional display integration, thermal insulation enhancement, and negative ion air purification for smarter and healthier environments.
Texture selection

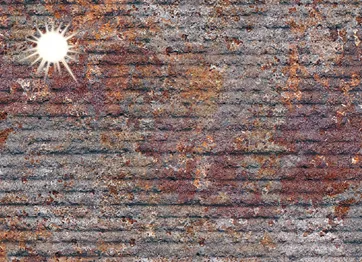

eSolarFacade(eBIPV) Stone Ridged Andes White
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options

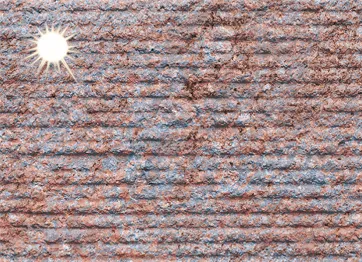

eSolarFacade(eBIPV) Stone Ridged Andes Yellow
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options

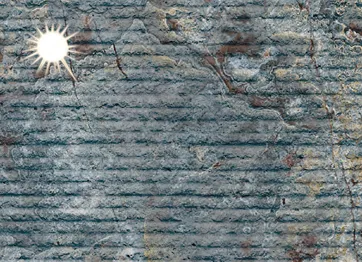

eSolarFacade(eBIPV) Stone Ridged Plain White
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options

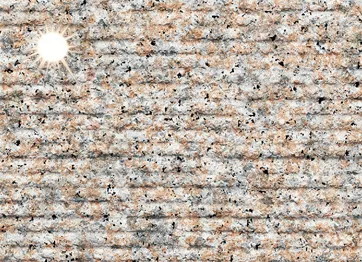

eSolarFacade(eBIPV) Stone Ridged Gold Sesame
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options

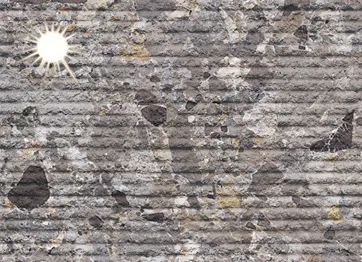

eSolarFacade(eBIPV) Stone Ridged Nile Medium Yellow
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options

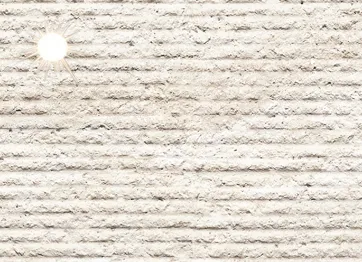

eSolarFacade(eBIPV) Stone Ridged Dandy Grey
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Ivory Cream
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Sand Beige
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Terracotta Clay
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Pearl Grey
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Slate Graphite
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Charcoal Black
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Limestone Buff
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Basalt Anthracite
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Travertine Walnut
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Quartzite Silver
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Granite Midnight
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Marble Carrara
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Onyx Honey
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Dolomite Blush
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Sandstone Terracotta
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Gneiss Pewter
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Schist Moss
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Soapstone Ash
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Feldspar Rose
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Jasper Rust
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Malachite Forest
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Serpentine Olive
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Porphyry Burgundy
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Alabaster Warm
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Gabbro Eclipse
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Rhyolite Copper
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Breccia Tawny
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Chert Oyster
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Tuff Linen
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Andesite Storm
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Diorite Salt
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Syenite Dusk
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Monzonite Ember
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Anorthosite Lunar
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Komatiite Bronze
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Phonolite Mist
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Ignimbrite Bone
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Aplite Crystal
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
eSolarFacade(eBIPV) Stone Ridged Pegmatite Quartz
Specifications (mm): 1140×570
Custom dimensions available
Customizable color options
Application

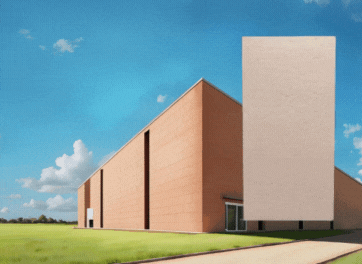

Industrial park exterior wall
For shopping centers, offices, museums, schools, and public buildings, PHOMI eCovering offers versatile architectural surface materials that balance aesthetics, durability, and sustainability.

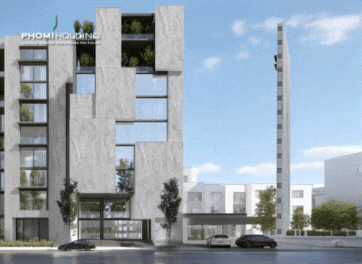

Hotel Club
PHOMI eCovering transforms interior spaces with realistic natural textures and sustainable surface solutions.

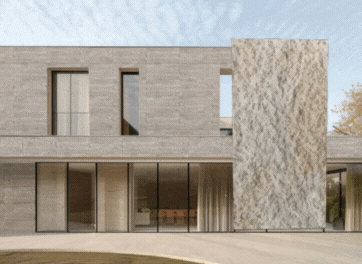

Residential Villas
Powering sustainable living spaces with beautifully integrated solar facades.

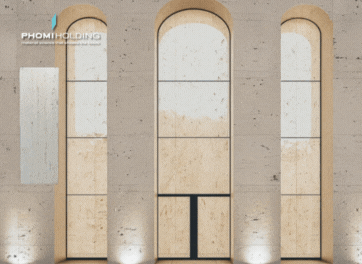

Commercial space exterior wall
Creating energy-efficient commercial facades with integrated solar innovation.

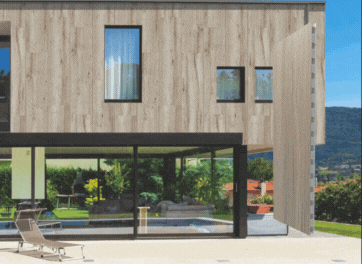

Hotel
PHOMI eCovering transforms interior spaces with realistic natural textures and sustainable surface solutions.

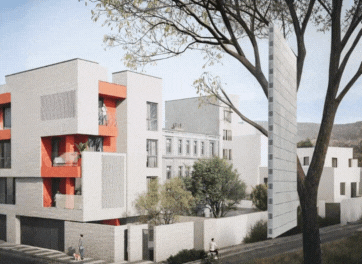

Hotel
PHOMI eCovering transforms interior spaces with realistic natural textures and sustainable surface solutions.
Technical Parameters
Test Conditions
Value (STC Standard Test Conditions)
Maximum Power (Pmax)
59.23 ~ 166.62 W
Maximum Power Voltage (Vpmax)
20.70 ~ 29.22 V
Maximum Power Current (Ipmax)
2.86 ~ 5.70 A
Open Circuit Voltage (Voc)
24.18 ~ 35.52 V
Short Circuit Current (Isc)
3.15 ~ 6.17 A
Module Efficiency
9.12 ~ 17.63 %
Maximum System Voltage (VDC)
1000 V (TUV/CE/CB/CQC/UKCA)
Maximum Fuse Current
25 A
Product size
1140 × 570 mm; custom dimensions available
Surface
Stone ridged Econiclay® photovoltaic facade finish
Application
Exterior facade and building-integrated photovoltaic envelope
Operating temperature
Designed for exterior architectural environments
Thermal performance
Supports facade insulation enhancement when integrated with wall systems
Warranty support
Project-specific warranty terms available on request
Product limited warranty
25 years
Authoritative Honors1
& Industry Certifications1
- The 112th Paris International Exhibition of Invention1
- The 9th Asia International Invention Award1
- The 136th Canton Fair Design Award1
- The 25th China Hi-Tech Fair Excellent Product Award1
- The 50th International Exhibition of Inventions of Geneva1
Indoor Solution
eCovering + eDisplay + eLighting
Interior surfaces combining decorative materials and invisible display technology.
Walls and spaces become interactive when activated.
Outdoor Solution
eSolarFacade + eDisplay
Building envelopes that generate clean energy from photovoltaic stone surfaces.
Facades become active power stations while preserving the authentic texture of natural stone.

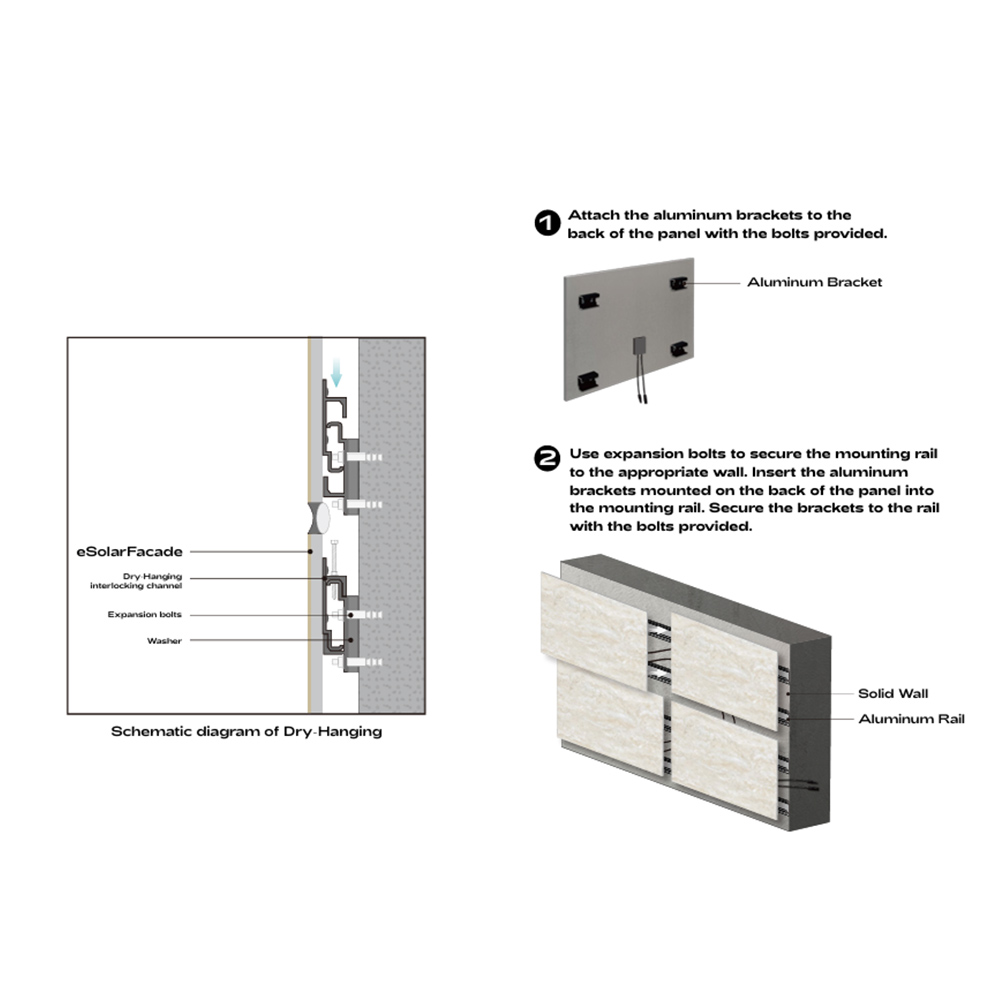

Installation Guide
Installation
Use a laser rangefinder and digital level for wall positioning. Secure the custom keel with an impact drill using mechanical anchoring. Align the panel slots with the keel for initial fixation, then fine-tune and reinforce with specialized connectors to ensure precision and efficiency.
Maintenance
1.Cleaning -Annual cleaning is recommended based on surface conditions. -Use mild soap and water; avoid organic solvents. 2.Inspection & Maintenance -Inspect curtain walls every five years, including panels, seals, and connectors. -Repair or replace damaged panels, sealants, hardware, and structural components. -Regularly check and maintain drainage systems.
